Single Mode Fiber Optic PLC Splitter 2mm/3mm SC/LC/FC connector

Name: Single Mode Fiber Optic PLC Splitter 2mm3mm SCLCFC connector
Brand: Geehe or OEM
Price: 1 USD

Buy cheap Single Mode Fiber Optic PLC Splitter 2mm/3mm SC/LC/FC connector product

Brand Name : Geehe or OEM

Model Number : Fiber Optic PLC Splitter

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 7-10 days

Packaging Details : Pearl box and carton

Operating wavelength : 1260~1650NM

Fiber Type : Corning G657A

Port : 1X16 or 1XN

Output Dia. : 0.25/0.9/2.0/3.0mm

Insertion Loss : 4.3~21.5dB

Return Loss : Less than or equal to 55dB

Input Fiber Length : Customized

Output Fiber Length : Customized

Input Connector : Customized

Output Conector : Customized

Contact Now

Single Mode Mini-distribution 1X16 PLC Splitter 0.9mm LC/APC Connector In Packed (FTTH, CATV, telecom)

Applications Features
Telecommunication system Low excess loss
Access network Low PDL
FTTH High reliability
PON
CATV

Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances

Single Mode Planar Lightwave Circuits Splitter Description
The Single Mode Planar Lightwave Circuits Splitter based on real time 6 DOF optical alignment monitoring and feedback technologies. The devices are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.

1xN/2xN PLC Splitters (without connects)

Parameter	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating wavelength (nm)	1260~1650
Port wavelength range (nm)	1310±20; 1490±10; 1550±20
Insertion loss @ 1310 nm/1550 nm	7.1	10.5	13.6	16.8	20.5	7.4	10.8	14.5	17.5
Uniformity (dB)	0.5	0.8	1	1.2	1.8	1.2	1.5	1.8	2
PDL @ 1310/1550 nm (dB)	≤0.3
Return loss @ 1310/1550 nm (dB)	≤55
Input power (mW)	250 max
Operating temperature (℃)	-40~+85℃
Storage Temperature (℃)	-40~+85℃
Fiber Type	Corning G657A1

Package dimensions

WxHxL(mm)	PORT
100x80x10	1x4	1x8	2x4	2x8
120x80x18	1x16	1x32	2x16	2x32
140x114x18	1x32	2x32	1x64

Single Mode Fiber Optic PLC Splitter 2mm/3mm SC/LC/FC connector

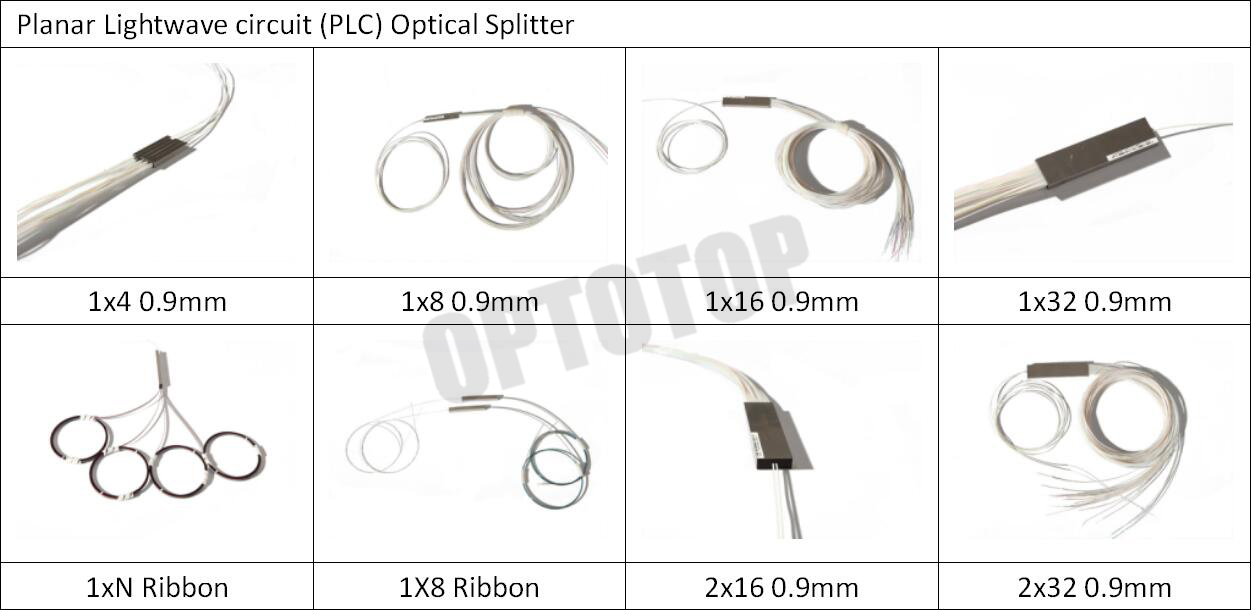

Single Mode Fiber Optic PLC Splitter 2mm/3mm SC/LC/FC connector Images
