900µM Planar Lightwave Circuit Splitter Connectorized SC / LC / FC Module

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

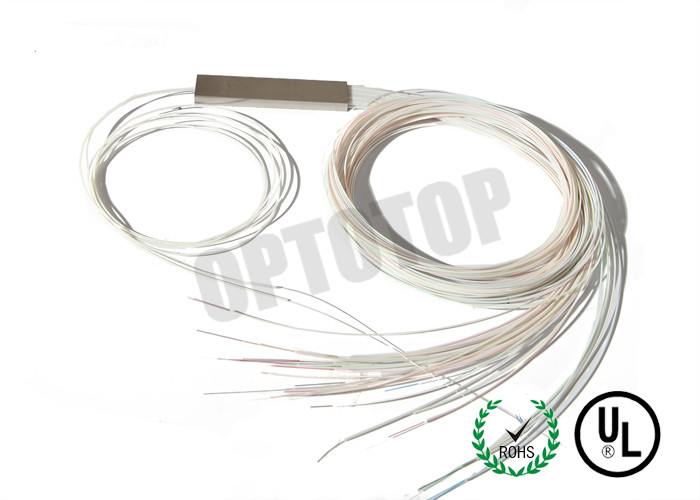

900µM Planar Lightwave Circuit Splitter Connectorized SC / LC / FC Module

  • 1
  • 2
  • 3

Brand Name : Geehe or OEM

Model Number : Fiber Optic PLC Splitter

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 7-10 days

Packaging Details : Blister Box or Carton Box

Operating wavelength : 1260~1650NM

Fiber Type : Corning G657A or G652D

Configuration : 1X4~2X64

Pigtail : 0.25/0.9/2.0/3.0mm

Insertion Loss : 4.3~21.5dB

Return Loss : Less than or equal to 55dB

Input Fiber Length : Customized

Output Fiber Length : Customized

Input Connector : Customized

Output Conector : Customized

Contact Now

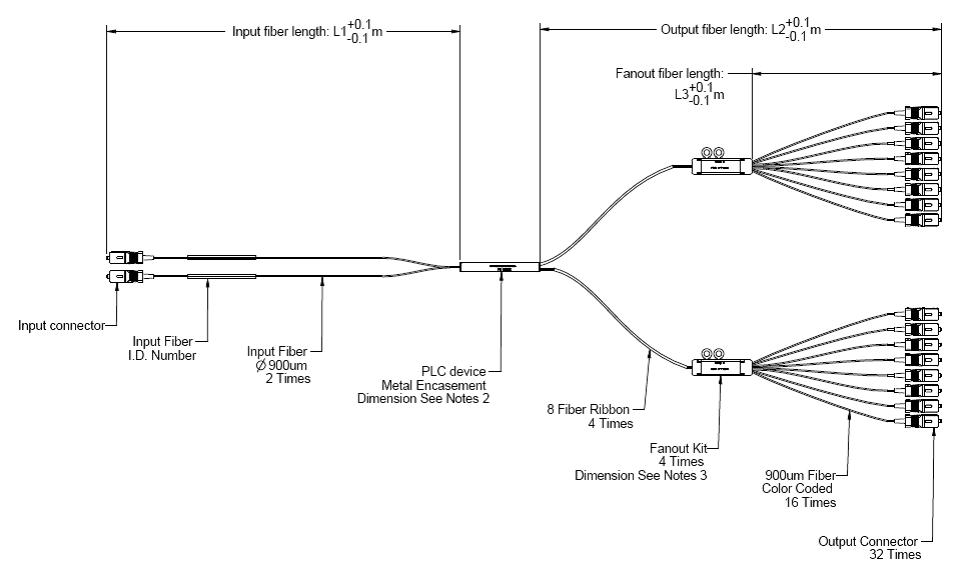

2 x 16 PLC Splitter 900µm Connectorized SC/LC/FC Module Mini Type



EX:PLC-104-09-01-09-02











Description


Planar Lightwave Circuit Splitter is a passive component used for uniformly splitting. The PLC Splitter is



built based on accurate alignment system and the mature manufacturing technology. It is fully compliant



with Telcordia GR-1209 and GR-1221 rebilitiy qualification requirement.





Features


High uniformity and reliability


Wide operating wavelength 1260~1650nm


Low insertion and return loss


Built with Corning G.657 Grade A optical


Low Polarization Dependent Loss(PDL)


Operating temperature -40°C to 85°C



Applications




FTTH deployments


CATV networks


Access/PON distributions


LAN,WAN,Metro

Certification and Compliance




GR-1209-CORE  Requirements for Passive Optical Components.


GR-1221-CORE  Reliability Assurance Requiremnts for Passive Optical Components.


GR-326-CORE    Requirements for Single Mode Optical Connectors and Jumpers Assemblies.


TIA-604               Fiber Optic Connector Intermateability Standard.


ROHS                  Directive on Restriction of Hazardous Substances






900µM Planar Lightwave Circuit Splitter Connectorized SC / LC / FC Module








Ordering Information



PLC- AAA- 0- C- 0- EE
  104=1x4
108=1x8
...
164=1x64
204=2x4
...
232=2x32		 0=250μm ribbon
09=900μm loose tube		 05=0.5m
1=1m
015=1.5m
5=5m
10=10m
15=15m		 0=250μm
09=0.9mm
ribbon		 05=0.5m
1=1m
015=1.5m
5=5m
10=10m
15=15m
  Configuration Input Fiber Type Input Fiber Length Output Fiber Type Output Fiber Length

EX:PLC-104-09-01-09-02

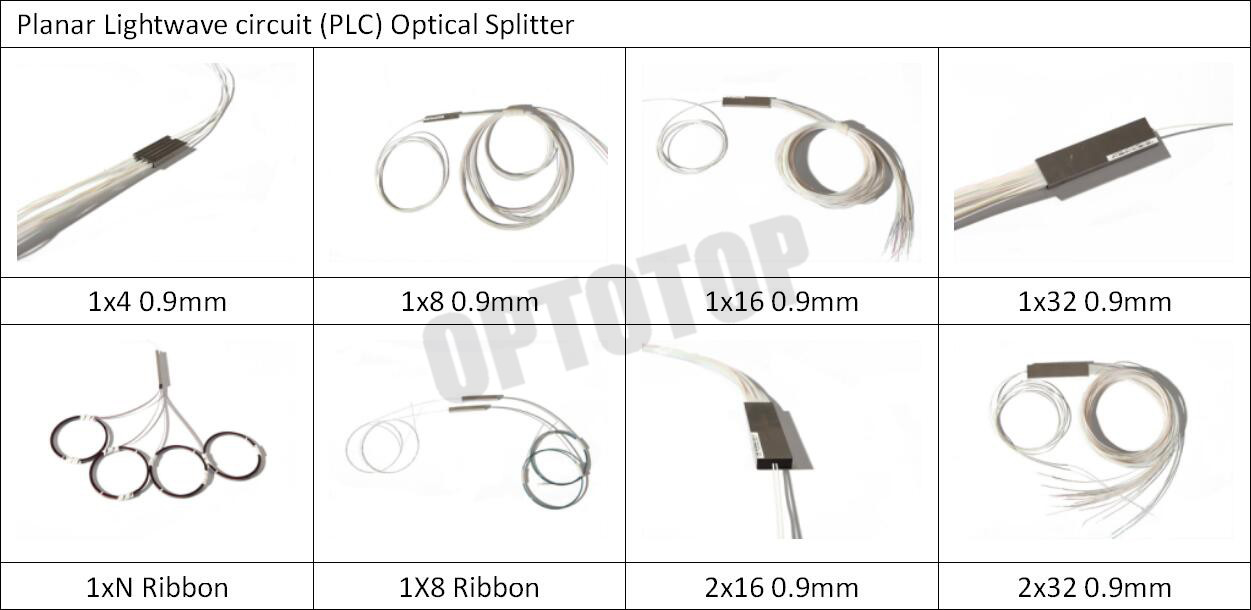

1xN/2xN PLC Splitters (without connects)

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating wavelength (nm) 1260~1650
Port wavelength range (nm) 1310±20; 1490±10; 1550±20
Insertion loss @ 1310 nm/1550 nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return loss @ 1310/1550 nm (dB) ≤55
Input power (mW) 250 max
Operating temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1


900µM Planar Lightwave Circuit Splitter Connectorized SC / LC / FC Module



Package dimensions

WxHxL(mm) PORT
60x7x4 1x4 1x8 2x4 2x8
60x12x4 1x16 2x16
80x12x6 1x32 2x32
100x40x6 1x64



Package dimensions

LxWxH(mm) PORT
100x80x10 1x4 1x8 2x4 2x8
120x80x18 1x16 1x32 2x16 2x32
140x114x18 1x32 2x32 1x64


900µM Planar Lightwave Circuit Splitter Connectorized SC / LC / FC Module
