SC Connector Female Fiber Optic Patch Cord OEM Production Line With High Capacity

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

SC Connector Female Fiber Optic Patch Cord OEM Production Line With High Capacity

  • 1
  • 2

Brand Name : Geehe Own Brand, OEM Factory

Model Number : Geehe- 015

Certification : ISO9001,14001,GR326,RoHS

Place of Origin : Hubei

MOQ : 20 pcs

Price : Based On Requirements and Quantity

Payment Terms : T/T, D/P, D/A, L/C, Western Union,become our partner

Supply Ability : 10,000 pcs per day

Delivery Time : Within 3-5 Working Days, Based On Quantity

Packaging Details : 1 pc ,1 PE bag, thicker outer box or do OEM.

Mode Name : Sc Connector Female Fiber Optic Patch

Ferrule Polish End-Face : PC, UPC, APC

Jacket Materials : OFNR,PVC or LSZH optional

Sleeve Diameter : 2.0MM, 3.0MM, 0.9MM

Fiber Length : 1M, 1.5M, 2M or customized

Jacket Color : Yellow, ivory, white, blue, orange, aqua, pink color optional

Insertion Loss : ≤0.2dB

Fiber count : Simplex, duplex mode optional

Application : GEPON, FTTH, FTTX

Certificate : ISO9001,14001, RoHS

Contact Now



SC Connector Female Fiber Optic Patch Cords OEM Production Line With High Capacity









Description:





Geehe Fiber Optic Patch Cords deliver extreme performance and reliability for all system connections.Available in OM2, OM3, OM4, and OS2 type fibers.

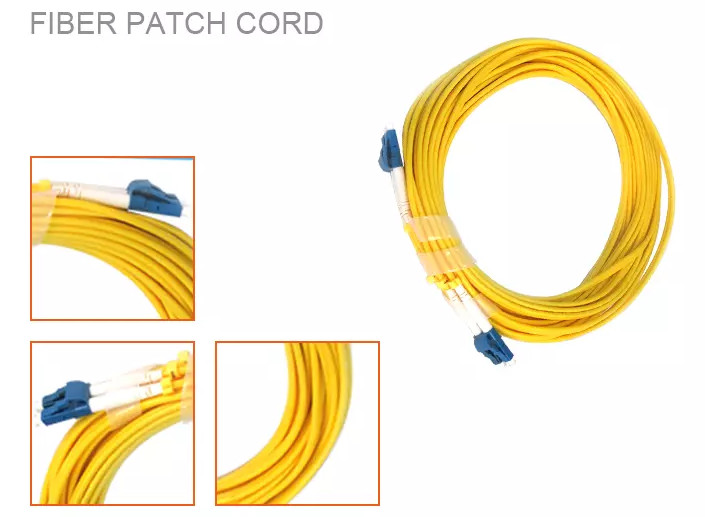

Fiber Patch Cords Details:



SC Connector Female Fiber Optic Patch Cord OEM Production Line With High Capacity





Features:



  1.   Bend insensitive OM2, OM3, OM4, and OS2 type fibers
  2.   Conforms to IEC, EIA-TIA and Telecordia performance requirements
  3.   Available in duplex configurations with clips
  4.   Standard LC and SC connector types
  5.   600um tight buffer
  6.   Riser rated (OFNR) jacket type
  7.   RoHS compliant



Applications:



      FTTx

      Data and Tele Communications
      Networks including Ethernet, Fast Ethernet and GBE
      Test and measurement
      CATV





Specification:



Parameter Unit Index
End-Face Type   PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times   ＞1000
Operating Temperature ℃ -40~ +80









 Ordering Information
OFC -X -XX -XX -XX -X -X
  S: Simplex
D: Duplex		 LA:FC/APC LC:FC/UPC LP:FC/PC LA:FC/APC LC:FC/UPC LP:FC/PC 09:0.9mm 20:2.0mm 30:3.0mm 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber Mode Connector Type Conector Type Cable Diameter Fibe Type Fibe Length





EX:OFC-D-LA-LA-09-0.1.0







Product Details



SC Connector Female Fiber Optic Patch Cord OEM Production Line With High Capacity
