Customized Length Simplex Fiber Optic Patch Cord Single Mode Sc Fiber Jumper 5m

Name: Customized Length Simplex Fiber Optic Patch Cord Single Mode Sc Fiber Jumper 5m
Brand: Geehe or OEM
Price: 1 USD

Buy cheap Customized Length Simplex Fiber Optic Patch Cord Single Mode Sc Fiber Jumper 5m product

Brand Name : Geehe or OEM

Model Number : GOP-SC

Certification : ISO9001,RoHS

Place of Origin : Wuhan,China

MOQ : 10 Pcs

Price : 1-10usd/pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash, Ali Pay

Supply Ability : 25,000 per 8 hours

Delivery Time : Within 2-5 working days

Packaging Details : Individual box and thick carton box,or according to customer's package manual

Model Item : Fiber Patch Cord

Cable Size : 0.9mm,2.0mm,3.0mm

Fiber Length : Customize

Mode : Single Mode or Multi Mode

Connector Type : SC-SC

Application : Optical Amplifiers ,Fiber Laser,Fiber Sensor

Jacket : PVC, LSZH, OFNP, OFNR

name : fiber optic patch cord single mode

Contact Now

Customized Length Simplex SC Fiber Optic Patch Cord Sc Fiber Jumper 5m

Brief Advantages:

1. 15 Years High level OEM&ODM Factory

2. 25,000 pcs mechanical capacity per 8 hours

3. More than 800 technically skilled workers

4. Brand name raw materials and precise connector

5. Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard

6. Certificate ISO9001 quality system approved

Features:

Low insertion loss and back reflection loss

Ferrule end surface pre-domed

Excellent mechanical endurance

High Extinction Ratio

High Reliability &Stability

Applications:

Optical Amplifiers

Access Network

Active dvice termination

Local Area Networks(LANs)

Data Processing networks

Wide Area Networks(WANs)

Technology Specification:

Specification
Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥50	≥50
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Ordering Information:

OFC	-X	-XX	-XX	-XX	-XX	-XX
	S: Simplex D: Duplex	SA:SC/APC SC:SC/UPC SP:SC/PC	SA:SC/APC SC:SC/UPC SP:SC/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length

EX:OFC-S-SC-SC-09-1-0.5

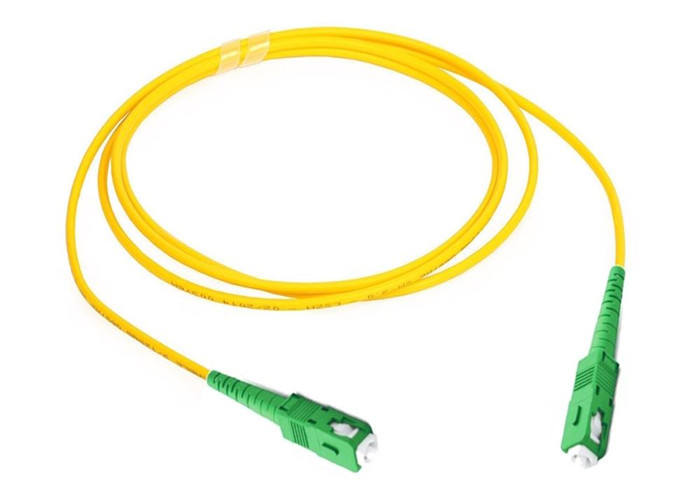

Product Picture:

Geehe's Workshop:

https://youtu.be/vxxuFCA2FWg

Product Tags:

fiber optic jumper

simplex patch cord

Customized Length Simplex Fiber Optic Patch Cord Single Mode Sc Fiber Jumper 5m Images
