LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection , insertion loss

Name: LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection insertion loss
Brand: Geehe or OEM
Price: 1 USD

Buy cheap LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection , insertion loss product

Brand Name : Geehe or OEM

Model Number : Optical Pad Attenuator, Bulkhead Attenuator

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 50 PCS

Price : Price Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1,000pcs per day

Delivery Time : 5-7 working day

Packaging Details : plastic zip bag and carton

Material : Attenuation Fiber 21.5 , Plastic Material , zirconia ceramic

Connector Type : LC

Interface Polish : UPC and APC can be choosed

Attenuation Value : Various attenuation values from 1dB to 30dB

Type : Male to Female

Features : High return loss

Contact Now

LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection , insertion loss

Product Description:

Optical pad attenuators are built with metal-ion doped optical slices and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Features:
Low back reflection and Low PDL
High precision attenuation value
Plastic or metal housing material

High durability

Applications:

Optical transmission systems

Receiver padding

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Package & Specifications:

Packaging	Description
Packaging	Clear Ziploc bag, 1 unit per bag
Physical Characteristics	Parameter	Value
	Plastic material	UL 94V-0 ABS high-impact thermoplastic
	Fiber material	Metal-ion doped optical fiber
Mechanical Characteristics	Parameter	Value
	Operating temperature (℃)	-40 ~ +85
	Storage temperature (℃)	-40 ~ +85
Optical Performance	Parameter	Value
	Operating bandwidth	1250nm~1625nm
	Center wavelength	1310nm and 1550nm
	Attenuation tolerance	1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
	Return loss UPC(dB)	≥45
	Return loss APC(dB)	≥55
	PDL	≤0.1

Ordering information:

OAT-	HF-	XX-	X	A-	XX-
	HF: High return loss type	LC: LC	1: APC		01: 01DB
		SC: SC	2:UPC		02: 02DB
		FC: FC			03: 03DB
					04: 04DB
	Attenuator Type	Connector Type	Interface polish		Attenuation Value

EX: OAT-HF-LC-2A-02

LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection , insertion loss

Product Tags:

optical variable attenuator

single mode attenuator

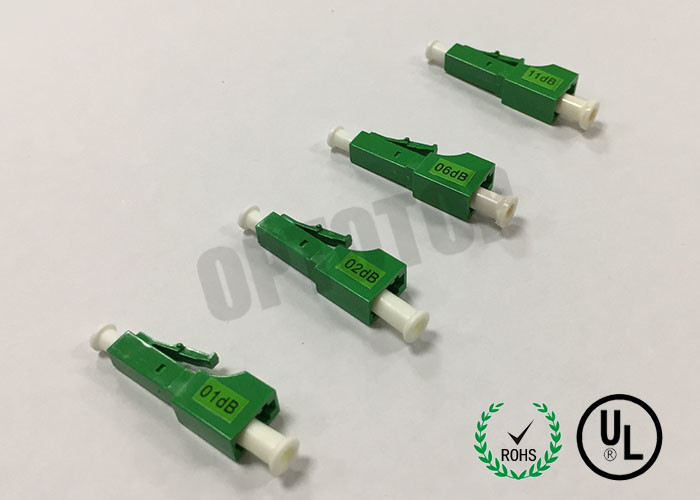

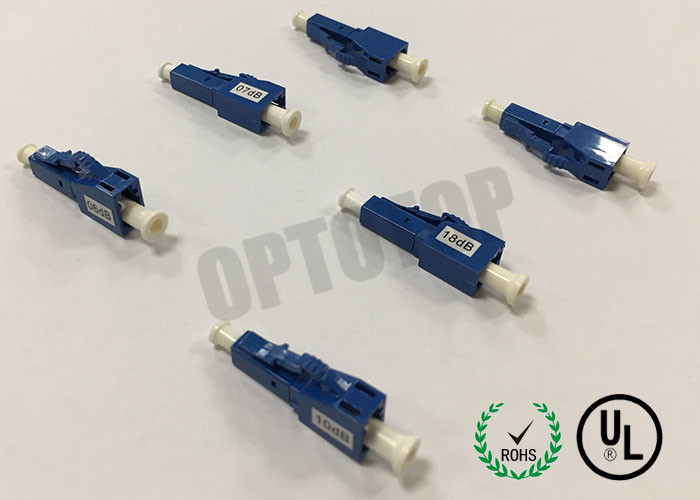

LC UPC or APC Polish Low PDL Fiber Optical Attenuator Low back refection , insertion loss Images
