Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom

Brand Name : Geehe or OEM

Model Number : Single Mode Fiber Coupler

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 300,000pcs per month

Delivery Time : 7-10 days

Packaging Details : Blister box and carton

Configuration : 1x2

Fiber Material : Single Mode

Operating Wavelength : 1310nm

Coupling Ratio : 2:98

Fiber Type : 2mm

Fiber Length : 1.5m

Connector : SC/UPC-SC/UPC

Package : B

Contact Now

Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom

 EX: WBC-P-12-31-50-1-20-SU-C
Description
1*N(2*N) coupler splitter modules are cascaded with the single mode couplers. These modules are widelly used for FTTH, LAN, and CATV optical  networks.

The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Specifications


ParameterPA
Operating wavelength (nm)980,1310, 1490 ,1550
Operating bandwidth (nm)980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm
Fiber Type(dB)

Corning G652D OR Corning G657 A1

0.15

Insertion loss (dB)50:/50≤3.3≤3.5
 40/603.70~4.40≤2.53.50~4.60/≤2.8
 30/705.00~5.60/≤1.84.90~6.10/≤2.1
 20/806.80~7.40/≤1.26.50~7.70/≤1.2
 10/909.60~10.50/≤0.68.80~11.40/≤0.8
 5/9512.70~13.50 /≤0.412.05~14.05/≤0.5
 3/9714.60~15.50/≤0.313.60~16.05/≤0.4
 2/9816.60~17.90/≤0.2515.60~18.20/≤0.3
 1/9919.20~20.80/≤0.218.80~21.40/≤0.25
PDL (dB)≤0.1≤0.15
Return loss(dB)≥50≥45
Directivity (dB)≥55
Operating temperature (℃)-40 ~ +85


The above specification is without connector
Other specifications can be made on customer request.
 Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom
 Key Features
Low excess loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
Mini sizes
Applications
Long-haul Telecommunications
CATV
FTTH
Local Area Network
Package Dimensions & Pigtail Style

Package Dimensions
Package A(Mini)2.4mm x 35mm stainless steel tube
Package A3.0mm x 48mm stainless steel tube
Package B3.0mm x 55mm stainless steel tube
Package C90mm x16mm x 9mm case
Pigtail Style
Package A250μM bare fiber
Package B900μM loose tube
Package C900μM loose tube or 2mm/3mm cable


Other package dimensions can be made on customer request.

Ordering Information


WBC-X-X2-XX-XX-X-XX-XX-X


P:Premium

A:Grade A

X:

On request



12:1X2

22:2X2







31:1310nm

49:1490nm

55:1550nm

98: 980nm



01: 01:99

02: 02:98

……

50: 50:50



1: 1 meter

x: on request







25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable

30: 3mm cable

SC:SC/UPC

SA:SC/APC

......

00:no connect



A: A

B: B

C:C





GradePort numberOperation Wavelengthcoupling RatioFiber lengthFiber typeConnect TypeDimension


 EX: WBC-P-12-31-50-1-20-SU-C


Applications Features

Low excess loss
Low PDL
Multi-port
High uniformity

Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system Amplifier
CATV














































Product Tags:

single mode fiber splitter



single mode couplers


Buy cheap Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom product

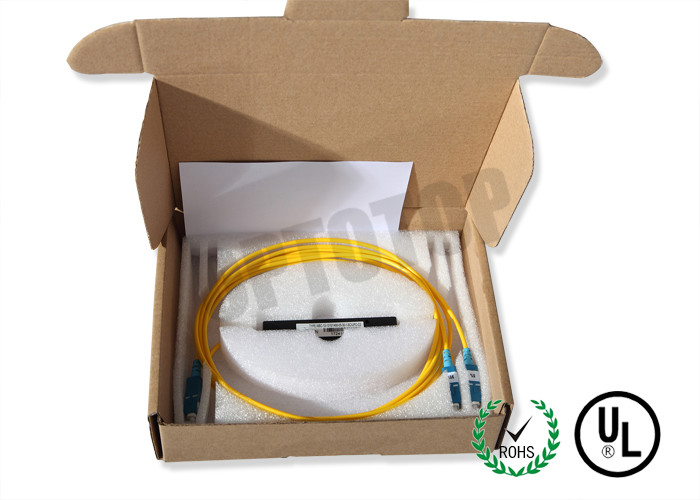

Single Mode Fibre Optic Couplers FBT 1X2 1310nm For Network / Telecom Images
