Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange

  • 1
  • 2
  • 3

Brand Name : Geehe or OEM

Model Number : Adapter---Multimode 002

Certification : ROHS,ISO9001,ISO 14001

Place of Origin : Wuhan, China

MOQ : 500 pcs

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union, Cash

Supply Ability : 2,000pcs per day

Delivery Time : 3-5 Working days to delivery,based on quantity

Packaging Details : plastic box with 24 pcs, outer with thick cartons

Model Name : Fiber Optic Adapter LC Duplex Adapter

Material : PC ABS

JALCSCDFL-AQ SCtype Type:: LC Adapter Optional Adapter : SC,LC,FC,ST,MU,MTRJ,MTP/MPO,DIN

Surface Polishing : PC,UPC,APC

Color : Blue, Beige, Aqua, Green

Sleeve : Zirconia

Fiber Mode : Singlemode; Multimode; OM3; OM4;OM5

Return Loss : > 50db

Operating Temperature : 40~+85

Application : FTTx,LAN,CATV,Telecom, (Data Center)

Contact Now

Fiber Optical Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange


Brief Introduction



LC Duplex Adapters are versatile and fit most patch panels, wall-mounts, racks, and adapter plates.



Our LC Duplex Adapters fit standard Simplex SC cutouts for patch panels, cassettes, adapter plates, wall-mounts and more. These adapters have the most common footprint, and as such will fit universally into any company’s product which adheres to current fiber optic standards.



Product Features



• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.





Specification





parameter SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)



Ordering Information:
EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X


S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
  Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type




  Parameter     Unit    Value
  Connector       /   FC ST SC LC
  Sleeve       /   Zirconia
  Insertion Loss      dB   ≤0.20(Plug≤0.30)
  Repeatability     Time   ＞1000





Application



1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks



Pictures

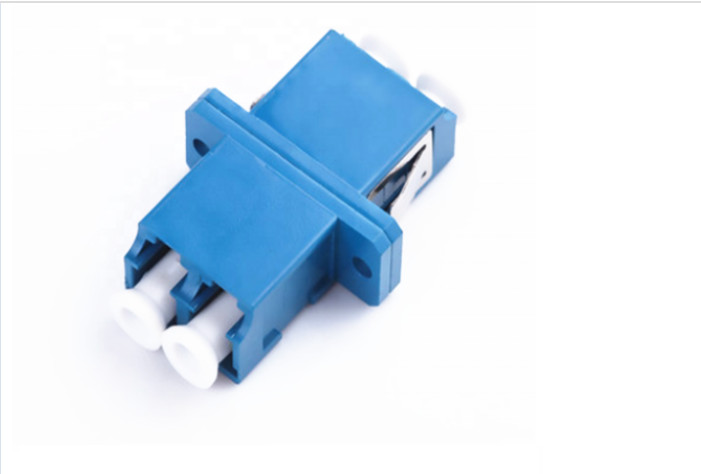

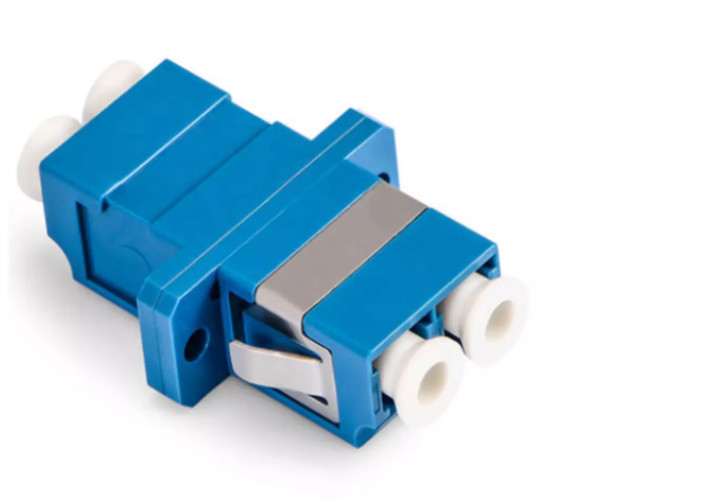

Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With FlangeToslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange
