SC LC FC APC Singlemode Tube Splitter 1x8 PLC Fiber Optic Splitter

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

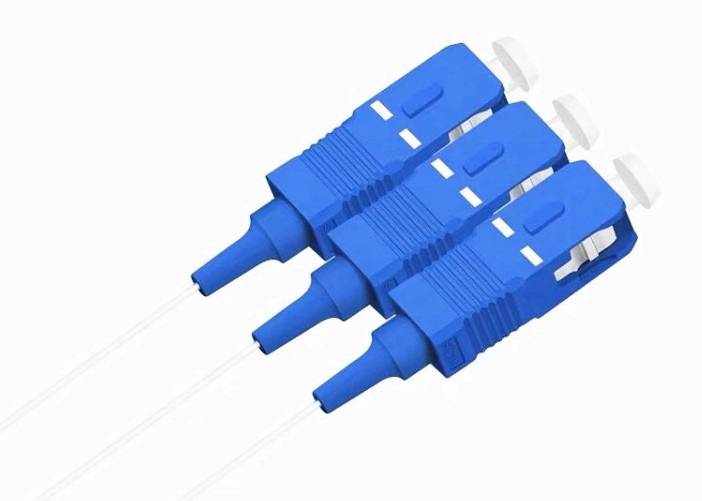

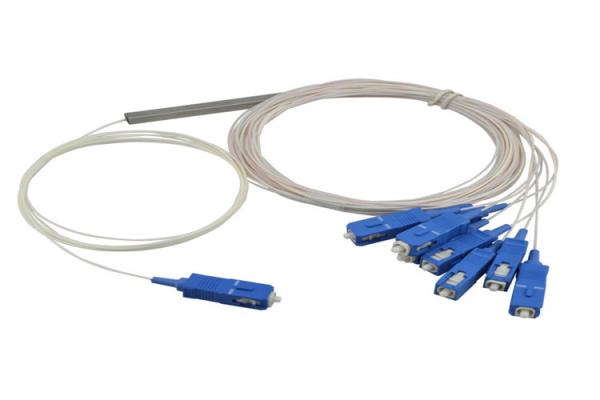

SC LC FC APC Singlemode Tube Splitter 1x8 PLC Fiber Optic Splitter

  • 1
  • 2

Brand Name : Geehe，OEM

Model Number : Singlemode Tube Splitter,1x8

Certification : ISO9001,14001, GR-1221 and GR-1209

Place of Origin : Wuhan,China

MOQ : 10 Pcs

Price : Negotiabled

Payment Terms : T/T, L/C, D/A, Western Union,Cash

Supply Ability : 5,000pcs per day

Delivery Time : 2-3 Working days after confirm orders

Packaging Details : Blister box and outer thick carton

Model Name : Singlemode Tube Splitter

Splitting Ratio : 1:2, 1:4, 1:16, 1:32, 2:16...

Model Type : 1X2, 1x4,1x8,1x16,1x32,1x64

Ferrule Polish : APC,UPC,PC

Operating Bandwidth : 1260~1650nm

Loose Tube Diameter : : 0.9mm, 2.0mm, 3.0mm

Pigtail Length : 1.0m and custom design

Application : FTTH FTTB FTTX PON CATV

Directivity : ≥55dB

Warranty : 12 months

Contact Now

SC LC FC APC Singlemode Tube Splitter 1x8 PLC Fiber Optic Splitter



Brief Introduction



The Geehe PLC splitter is more compact offering greater degrees of splitting where losses are not sensitive to the wavelength.



Features


• Low Insertion Loss
• Low PDL (Polarisation Dependant Loss)
• High Return Loss
• Uniform Power Splitting
• Wide Operating Wavelength
• Wide Operating Temperature
• Good Environmental Stability
• Qualified under Telcordia GR-1221 and GR-1209



Applications

• FTTx System
• CATV Networks
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• Test Equipment





Specification:



Parameter P A
Operating wavelength (nm) 980,1310, 1490 ,1550
Operating bandwidth (nm) 980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm
Fiber Type(dB)

Corning G652D OR Corning G657 A1

0.15
Insertion loss (dB) 50:/50 ≤3.3 ≤3.5
  40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
  30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
  20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
  10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
  5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
  3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
  2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
  1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥50 ≥45
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85




Package Dimensions
Package A(Mini) 2.4mm x 35mm stainless steel tube
Package A 3.0mm x 48mm stainless steel tube
Package B 3.0mm x 55mm stainless steel tube
Package C 90mm x16mm x 9mm case
Pigtail Style
Package A 250μM bare fiber
Package B 900μM loose tube
Package C 900μM loose tube or 2mm/3mm cable


Other package dimensions can be made on customer request.

Ordering Information


WBC- X- X2- XX- XX- X- XX- XX- X


P:Premium

A:Grade A

X:

On request



12:1X2

22:2X2







31:1310nm

49:1490nm

55:1550nm

98: 980nm



01: 01:99

02: 02:98

……

50: 50:50



1: 1 meter

x: on request







25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable

30: 3mm cable

SC:SC/UPC

SA:SC/APC

......

00:no connect



A: A

B: B

C:C




Grade Port number Operation Wavelength coupling Ratio Fiber length Fiber type Connect Type Dimension


 EX: WBC-P-12-31-50-1-20-SU-C
