Single Mode 1*16 1*32 Fiber Optic PLC Splitter With PVC LSZH Outer Jacket

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Single Mode 1*16 1*32 Fiber Optic PLC Splitter With PVC LSZH Outer Jacket

  • 1
  • 2

Brand Name : Geehe or OEM,ODM

Model Number : PLC 1✖2,1✖4,1✖16,1✖32

Certification : ISO9001 Quality, RoHS

Place of Origin : Wuhan City

MOQ : 20 pcs

Price : 10-15pcs/unit

Payment Terms : D/P, D/A, L/C, T/T, Western Union,Cash

Supply Ability : 5,000 pcs per day

Delivery Time : With 3-5 days after confirmed the order

Packaging Details : PE bags with thick outer cartons,follow customer's requirements

Model Name : 1*16,1*32 PLC Fiber Optic Splitter

Connector Type : FC,LC,SC,ST etc

Package : Steel Tube, ABS Black Box

Wavelength : 1260-1650nm

Application : FTTX/CATV/LAN/PON

Material Of Outer : ABS/Stainless Steel

Certificate : ISO9001,14001

Fiber Length : Customized

Fiber Mode : Single Mode

Contact Now







1*16,1*32 PLC Fiber Optic Splitter with PVC LSZH Outer Jacket





Product description:



Geehe’s PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.



Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits.









Features:



  •  Single fiber, SC/LC/ST/FC-based connector
  •  In-line connection available
  •  Operating temperature: -40° to 85°C
  •  Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mm

Application:



  •  FTTx systems
  •  PON networks
  •  CATV links
  •  Optical signal distribution
  •  Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
  •  Compliance



Specification:



FIber Optical PLC Splitter
Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return Loss@ 1310/1551 nm (dB) ≤-55
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1





Package dimensions





WxHxL(mm) PORT
60x7x4 1x4 1x8 2x4 2x8
60x12x4 1x16 2x16
80x12x6 1x32 2x32
100x40x6 1x64

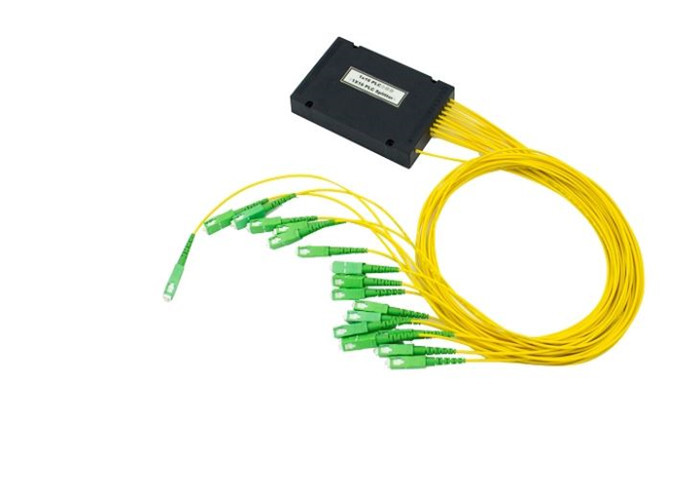

Product Pictures



Single Mode 1*16 1*32 Fiber Optic PLC Splitter With PVC LSZH Outer Jacket
